- Stock: on request, ask delivery time
- Manufacturer: KLEIN-Europe
- Model: LITEFOLD100-

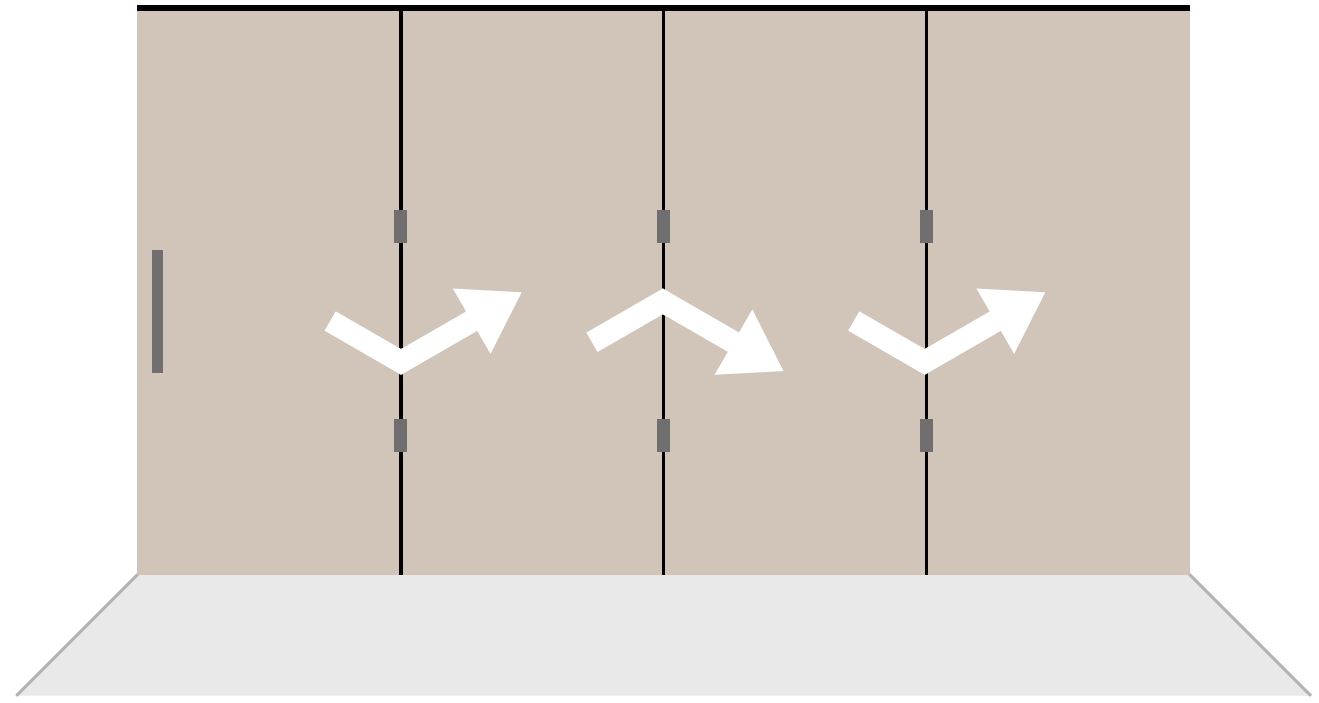

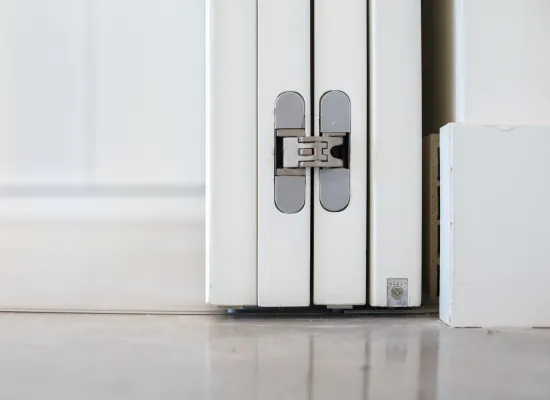

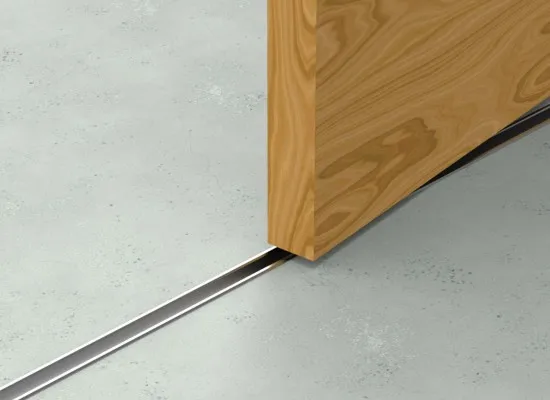

Folding door system Lite Fold100 is designed for a switched opening where all door panels are slid to 1 side. The system has a top and bottom rail so that a large opening can be closed without the door panels wobbling. The bottom rail is made as minimal as possible so that it visually disturbs the floor as little as possible. The system includes the concealed hinges for the door panels.
This system uses Retrac suspension kits. This means that the suspension brackets of this suspension set are placed inside the door panel. As a result, there is minimal space between the door panel the rail (4 mm).
The rail has an anodized silver aluminum surface.

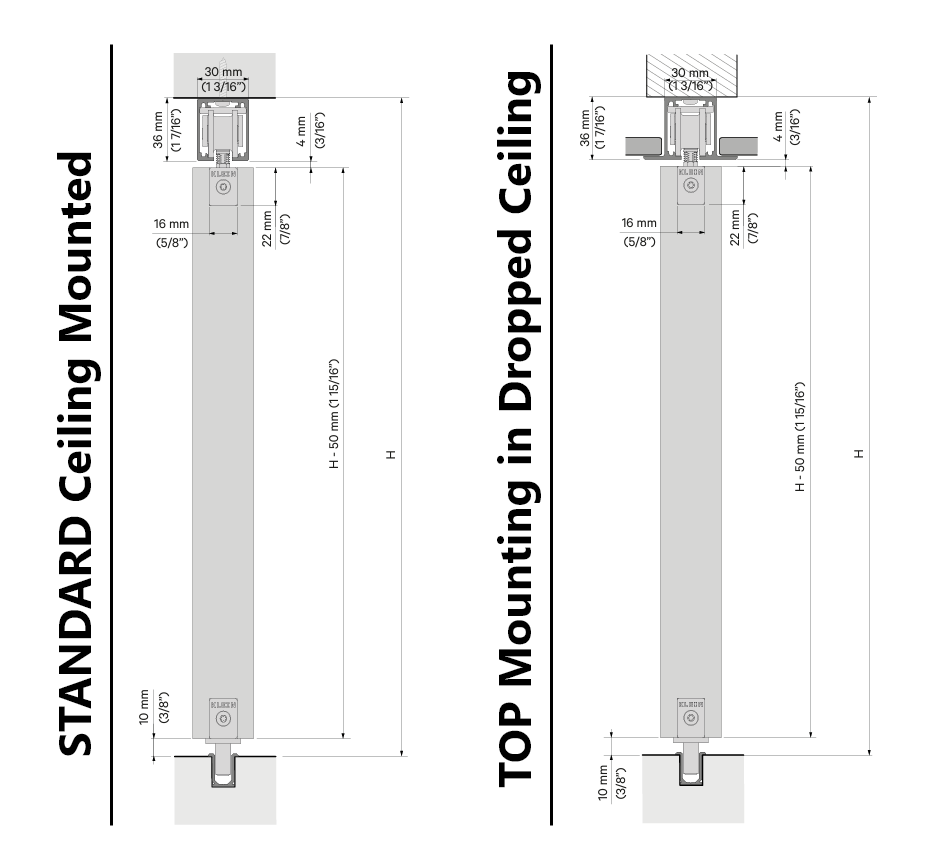

There are 2 rail types for this system:
- Standard: Here the rail is fixed to the ceiling.
- For suspended ceiling (Top): This rail is designed to be mounted in the suspended ceiling

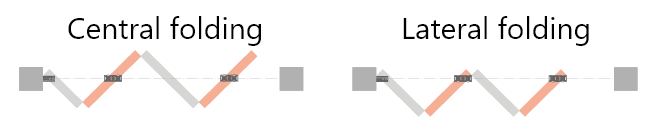

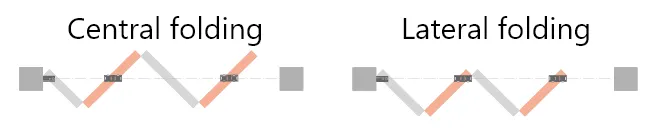

There are also 2 types of folds available:

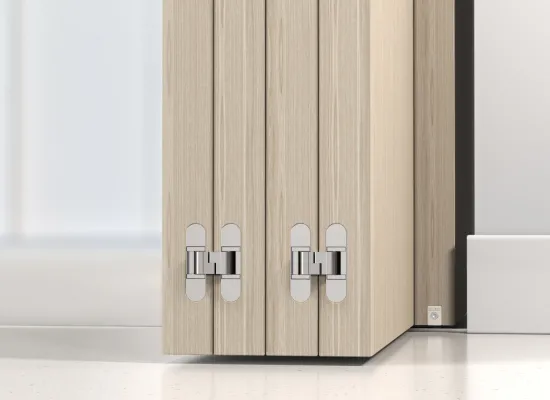

- Central: Here the suspension of the door comes in the middle of the door panel
- Lateral: In this fold type, the suspension of the door comes at the ends of the door panel.
The Lite Fold100 is available in the following numbers of door panels:
- 3 door panels
- 4 door panels
- 5 door panels
It is important that the door panels are between 30 and 40 mm thick. We recommend door panels 30 mm thick for this system, as this is also the thickness of the rail. This gives an extremely sleek look.
| Separate rail systems | |
| Mounting type | Ceiling mounted or mounting in a dropped ceiling |
| Rail length | 180 cm, 240 cm, 280 cm, 340 cm, 400 cm & 600 cm |
| Type of track kit | Retrac |
| Maximum weight | 100 kg |
| For how many doorpanels | 3, 4 or 5 doorpanels |
| Way of folding | Central of lateral |
| Characteristics |
|
| Type of sliding door system |
|
