Absolute Energy Doppio

Sliding door system Absolute Energy Doppio by Ermetika has the looks of the Absolute Evo Doppio, so with a modern, smooth finishing without any use of extra jamb and architrave (covering profile).

Beside the looks, this system has another big advantage; it can host switches, sockets, an entry phone or a thermostat over the full height of the frame (on both sides). The pocket frame is supplied with 2x 4 sockets provided with 3 units each and with 2x 2 pre mounted corrugated pipes ø 50 mm. On each side of the frame there is 1 earthing wire

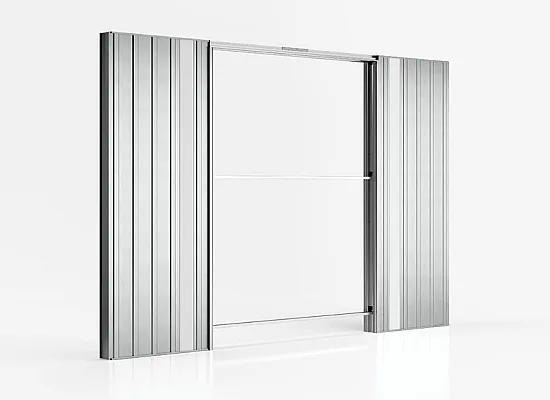

The pocket frame for double sliding doors for a metal stud wall, is very solid thanks to the special metal structure with corrugated profile. This superior engineering together with the hanging kit with self-lubricating bearings, will give you many years of trouble free silent and silky smooth movement of the door panels.

NOTE:

• The pocket frame comes without sliding door panels

Extra technical information:

• Available for wall thinkness 150 cm (PF150)
• The hanging kits supplied with the pocket frame, ares suitable for door panels with a weight upto 120 Kg each.
• With this particular pocket frame the actual dimension of the doorway will be reduced with approx. 2 cm
• It is recommended to use plasterboard with a thickness of 12,5 mm
• Door panels can be upto 4,2 cm thick
