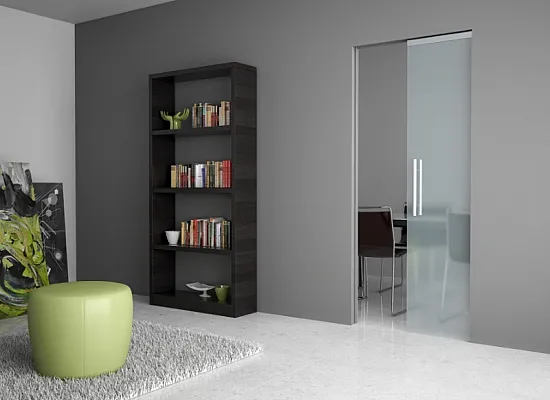

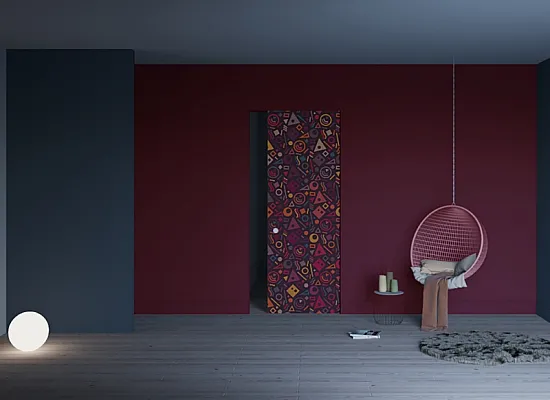

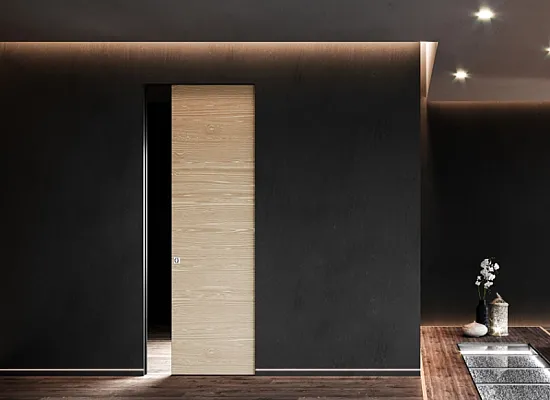

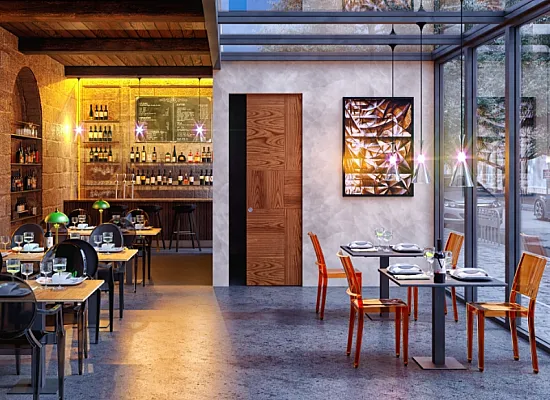

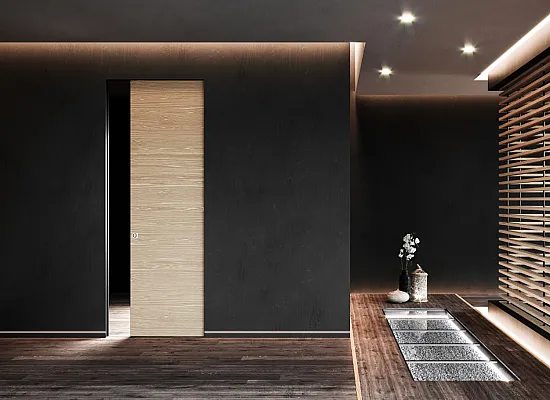

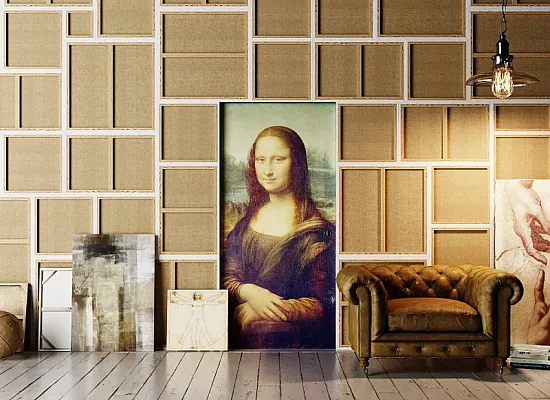

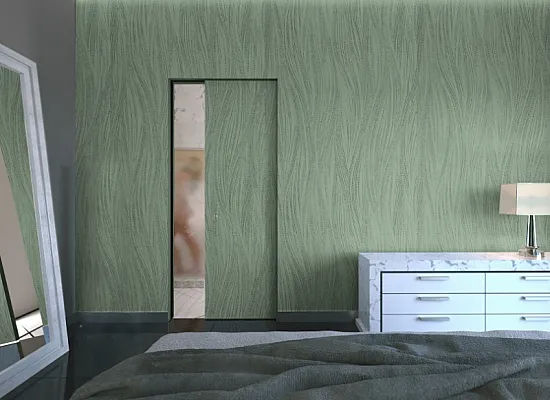

Sliding door system Absolute Evo Singolo by Ermetika is the dream of any interior architect or designer, because of the clean, modern finishing.
With this innovative pocket frame, plasterboard walls will have a smooth modern finish. The frame eliminates completely any use of extra doorpost and covering profile.

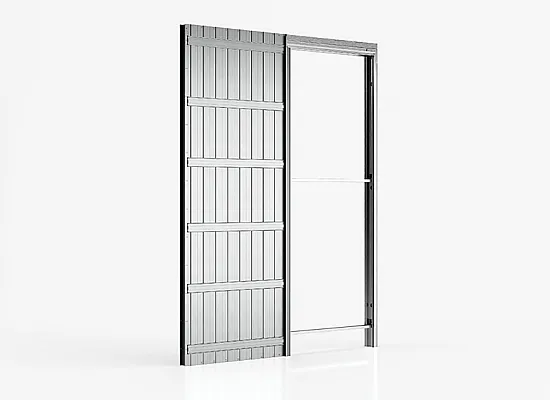

The pocket frame for 1 sliding door, is very solid thanks to the special metal structure with corrugated profile. This superior engineering together with the hanging kit with self-lubricating bearings, will give you many years of trouble free silent and silky smooth movement of the door panel.
- The pocket frame comes without sliding door panel
Extra technical information:
- Available for different dimensions finished wall thickness; 100 mm (single layer plasterboard), 107 mm (plaster, 125 mm (2 types for plasterboard: single layer OR for double layer) and 150 cm (double layer plasterboard or plaster)
- The hanging kit that is supplied with the pocket frame is suitable for a door panel with a weight up to 120 Kg.
- With this particular pocket frame, the actual dimension of the doorway will be reduced with approx. 1 cm
- It is recommended to use plasterboard with a thickness of 12,5 mm
- Door panel can be up to 4,2 cm thick
Option Absolute Evo Full Height:
This pocket frame is also available for a dropped ceiling, allowing the door to extend to the ceiling without a visible crossbar. Look at het Absolute Evo FH here
|Maximum weight door||
|Maximum thickness door||
|Door opening width||
60 cm, 70 cm, 80 cm, 90 cm, 100 cm, 110 cm, 120 cm
|Door opening height||
200 cm, 210 cm, 220 cm, 230 cm, 240 cm, 250 cm, 260 cm, 270 cm
• Ready-to-use pocket frame

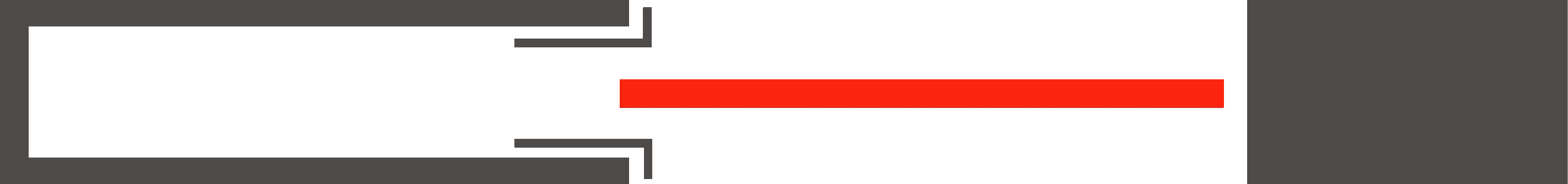

|Working of sliding door system||
|Absolute Evo Singolo - BIM bestanden/files (zip)||27.17MB||Download|
|Absolute Evo Singolo - DWG bestanden/files (.zip)||155.5KB||Download|
|Absolute Evo Singolo - Specificaties/ Specification (eng) (.pdf)||2.54MB||Download|

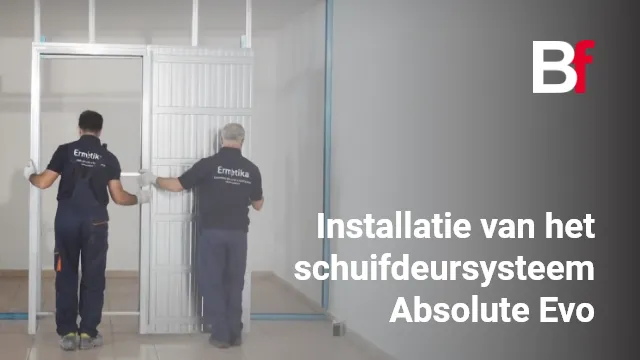

|Absolute Evo Singolo Set up instructionsd plasterboard (pdf)||1.35MB||Download|
|Absolute instructions for placing door (pdf)||653KB||Download|
