Absolute Evo Motorized

Absolute Evo Motorized
Absolute Evo Motorized
€5,404.17
  • Stock: on request, ask delivery time
  • Manufacturer: Ermetika
  • Model: AEM

Available Options

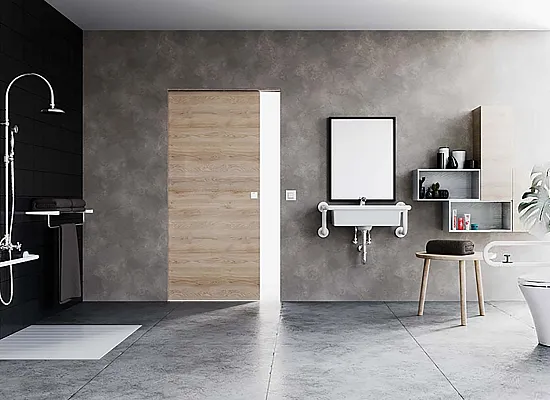

Sliding door system Absolute Evo Motorized by Ermetika® is a pocket door frame with an automatic door control. Thanks to the integrated doorjamb the system will have a smooth finish so it will flush with the wall.

The automatic door control has a reliable and silent electromagnetic drive for high user comfort.

Standard the door control is a so-called Push & Go system: as soon as the door is moved manually into opening direction by approximately 10 mm, the door panel will automatically go further in the desired direction. After that, the door closes automatically.

Although the automatic door control system is a fully automatic drive, the sliding door can easily be manually operated when power failure occurs.

Installation is easy thanks to plug & play: after the electrical cable is connected, the switch can be activated. Above the door opening there will be a paintable aluminum profile, so that there is always a possibility to inspect the motor.

In addition to the Push & Go system, there are a number of options for door-open-close-activation (additional cost):

  • Push button
  • Infrared motion detector

Extra technical information:

  • Available in 3 opening widths: 870 mm, 995 mm or 1120 mm
  • Reduction height passage 3 cm
  • Only available for finished wall thickness 125 mm (plasterboard or plastered wall)
  • Suitable for a door panel with a weight of max 80 Kg
  • Durability tested according to DIN 18650-1, ANSI and BSI
  • For plasterboard walls it is recommended to use plasterboard with a thickness of 12,5 mm
  • Door panel can be up to 4,2 cm thick
  • For finishing the end edges in the door opening, it is recommended to use a fibrous plaster (for example Uniflott from Knauf), which absorbs more movement. This reduces the risk of cracks and tears.

NOTE: The pocket frame comes without sliding door panel. This system is not a stock article and will always be specially ordered for the customer. Delivery time approx 8 weeks.

Pocket systems
Maximum weight door

80 Kg

Maximum thickness door

42 mm

Door opening width

87 cm, 99,5 cm, 112 cm

Door opening height

200 cm, 210 cm, 220 cm, 230 cm, 240 cm, 250 cm, 260 cm, 270 cm
